KIOXIA CD8-V 12.8TB Mixed Use PCIe 4.0 SSD

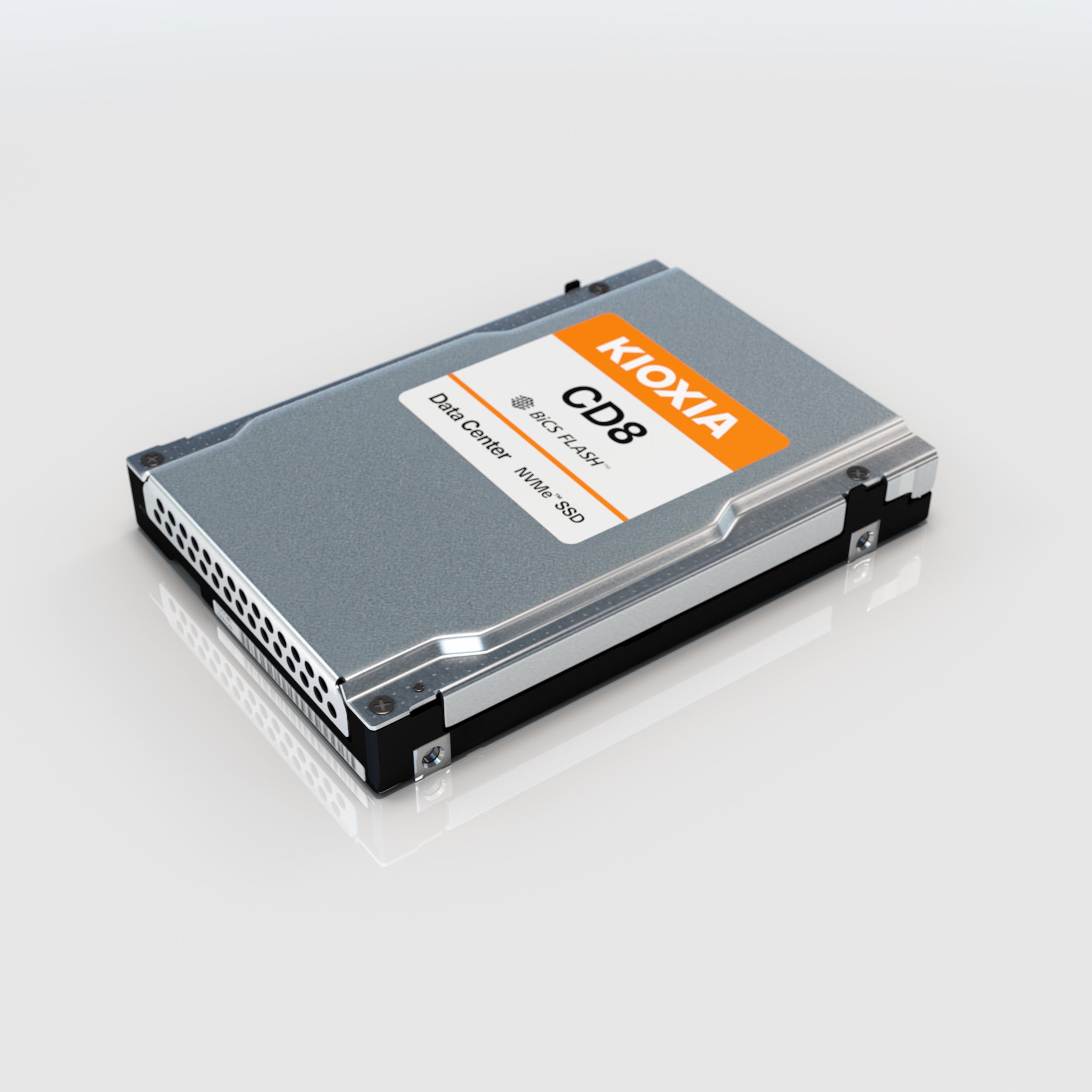

KIOXIA CD8P-V (E3.S) - 3.2TB Mixed Use 3 DWPD PCIe 5.0 SSD

KIOXIA CD8P-V (U.2) - 6.4TB Mixed Use 3 DWPD PCIe 5.0 SSD

KIOXIA CD8P-V (E3.S) - 6.4TB Mixed Use 3 DWPD PCIe 5.0 SSD

KIOXIA CD8P-V (U.2) - 12.8TB Mixed Use 3 DWPD PCIe 5.0 SSD

KIOXIA CD8P-V (E3.S) - 12.8TB Mixed Use 3 DWPD PCIe 5.0 SSD

Power your cloud with the KIOXIA CD8-V 12.8TB SSD, ideal for big data!

KIOXIA /

0.8 TB 1.6 TB 3.2 TB 6.4 TB 12.8 TB

U.3

Base SIE SED

उत्पाद प्रकार:

We won't be beaten on price. Request a quote.

Capacity

0.8 TB

1.6 TB

3.2 TB

6.4 TB

12.8 TB

Basic Specifications

Form Factor

U.3 (2.5-inch), 15 mm thickness

Interface

PCIe 4.0x4, NVMe 1.4

Flash Memory Type

112-layer BiCS FLASH TLC 3D NAND

Endurance Rating

Mid-Endurance – 3 DWPD (5 years)

Performance (Up To)

Sequential Read (128 KiB)

7,200 MB/s

7,100 MB/s

6,600 MB/s

Sequential Write (128 KiB)

1,800 MB/s

3,500 MB/s

3,800 MB/s

6,000 MB/s

Random Read (4 KiB)

1,000K IOPS

1,250K IOPS

1,150K IOPS

1,050K IOPS

Random Write (4 KiB)

160K IOPS

310K IOPS

340K IOPS

380K IOPS

Power Requirements

Power Loss Protection

Yes (PLP capacitor-based)

Supply Voltage

12 V ±10 %, 3.3 V ±15 %

Max Average Active Power

11 W (typ.)

13 W (typ.)

14 W (typ.)

19 W (typ.)

20 W (typ.)

Idle Power

5 W (typ.)

Reliability / Endurance

DWPD (5-year)

3.0

DWPD (3-year)

5.0 (approx.)

Total Bytes Written (5-year)

4.38 PBW

8.76 PBW

17.52 PBW

35.04 PBW

70.08 PBW

Warranty

5 years

MTBF

2,500,000 hours

UBER

Tested to 1E-18 (100× JEDEC spec)

Dimensions

Form Factor

U.3 (2.5-inch)

Thickness

15 mm (+0 / -0.5 mm)

Width

69.85 mm ± 0.25 mm

Length

100.45 mm (max)

Weight

130 g (max)

Environmental

Temperature (Operating)

0 °C to 74–75 °C

Temperature (Non-operating)

-40 °C to 85 °C

Humidity (Operating)

5 % to 95 % R.H.

Vibration (Operating)

21.27 m/s² { 2.17 Grms } (5–800 Hz)

Shock (Operating)

9.8 km/s² { 1,000 G } (0.5 ms)

Security & Management

NVMe Specification

NVMe v1.4

OCP Compliance

OCP Datacenter NVMe SSD Spec v2.0 (support)

Encryption

SIE / SED options (TCG Opal & Ruby SSCs)

More Information

Enhance your enterprise storage infrastructure with the KIOXIA CD8-V Series Enterprise NVMe SSD, a high-endurance, mixed-use solution for modern data centres. Available in capacities from 0.8 TB to 12.8 TB, the CD8-V Series delivers exceptional performance, reliability, and scalability for cloud, analytics, and virtualised environments.

Powered by PCIe 4.0 and 112-layer BiCS FLASH‚ TLC NAND, these 15 mm 2.5‚ drives achieve up to 7,200 MB/s sequential read speeds and 1,250 K IOPS random read performance, with 3 DWPD endurance and integrated Power Loss Protection (PLP). Designed for consistency under demanding workloads, the CD8-V Series ensures stable throughput and superior energy efficiency.

Ideal for big data analytics, virtualised applications, streaming media, and cloud deployments, the CD8-V Series supports Base, SIE (Sanitise Instant Erase), and SED security options to meet enterprise-level data protection standards. Combining endurance, performance, and proven NVMe technology, it provides a reliable foundation for next-generation storage architectures.

PRODUCT HIGHLIGHTS
