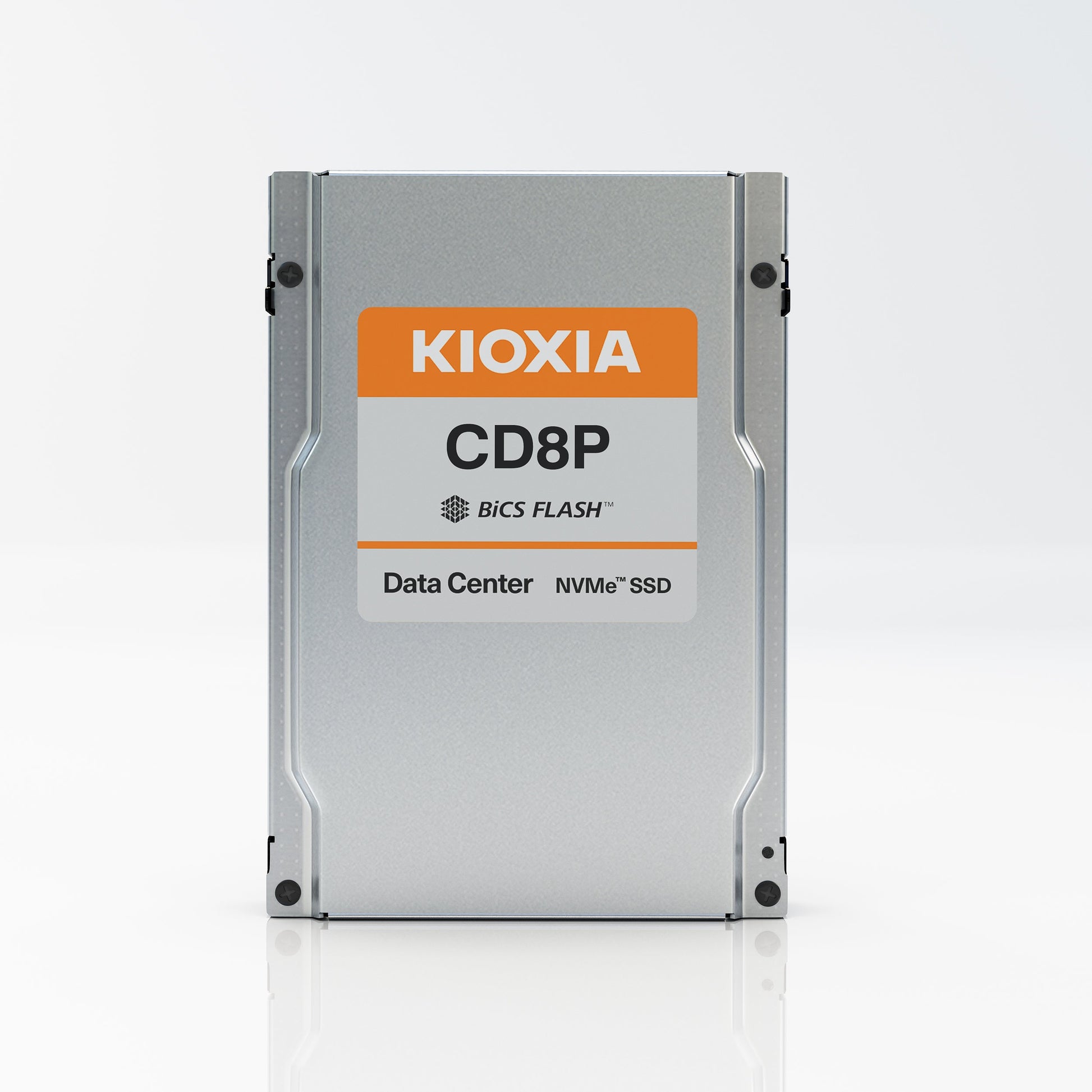

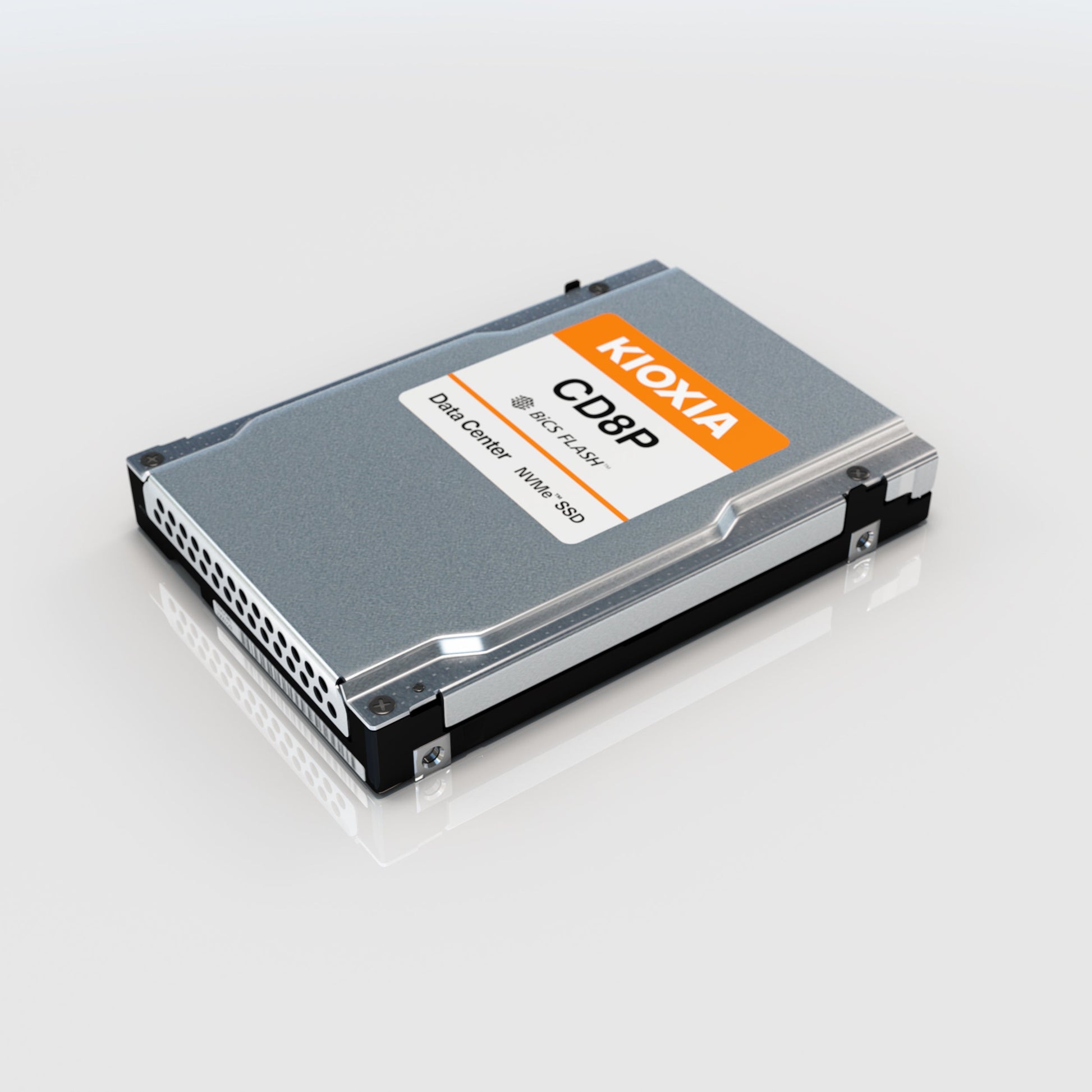

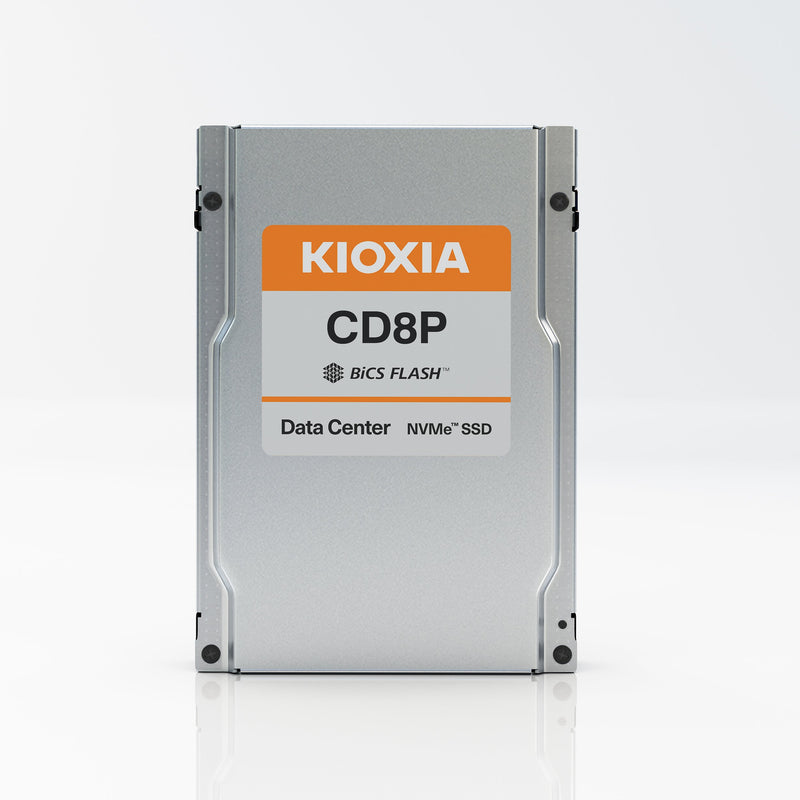

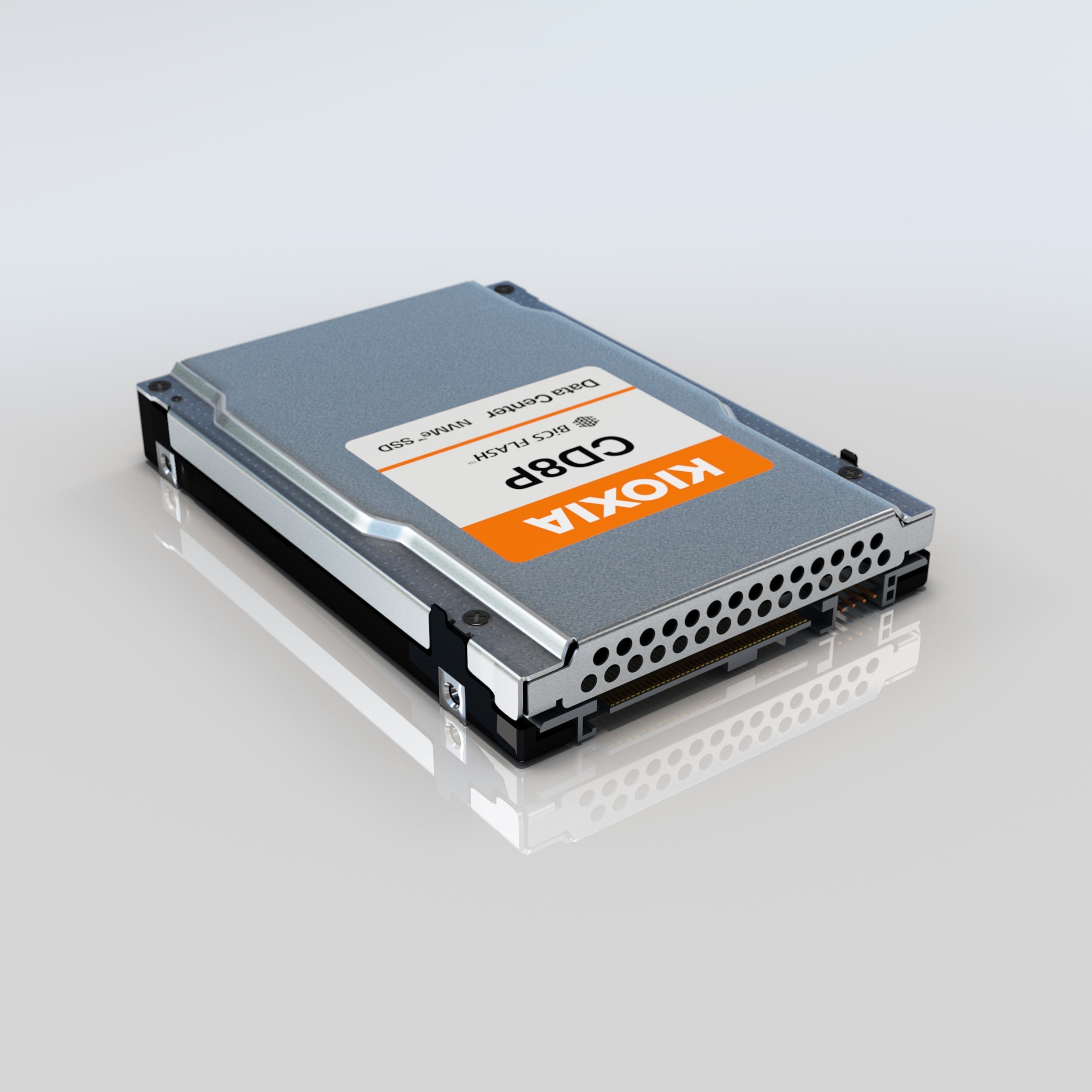

Kioxia CD8P
Product Details
| Capacity | 12.8 |
| Form Factor | 2.5-inch 15mm |
| Interface | NVMe, PCIe 4.0 |
| Sustained 4 KiB Random Write | 380K IOPS |
Reliability / Endurance
| DWPD | 3 |
| Warranty | 5 years |
| MTTF | 2,500,000 hours |
Performance in Single Port (1x4) Mode (Up To)
| Sustained 128 KiB Sequential Read | 6,600 MB/s |
| Sustained 128 KiB Sequential Write | 6,000 MB/s |
| Sustained 4 KiB Random Read | 1,050K IOPS |
| Sustained 4 KiB Random Write | 380K IOPS |
Power Requirements
| Power Loss Protection | Yes |
| Supply Voltage | 12 V ± 10 %, 3.3 V ± 15 % |
| Power Consumption (Active) | 20 W typ. |
| Power Consumption (Ready) | 5 W typ. |
Dimensions
| Thickness | 15 mm +0 / -0.5 mm |
| Width | 69.85 mm ± 0.25 mm |
| Length | 100.45 mm Max |
| Weight | 130 g Max |
Environmental
| Temperature (Operating) | 0 °C to 74 °C |
| Temperature (Non-operating) | -40 °C to 85 °C |
| Humidity (Operating) | 5 % to 95 % R.H. |
| Vibration (Operating) | 21.27 m/s² (2.17 Grms) (5 to 800 Hz) |
| Shock (Operating) | 9.8 km/s² (1,000 G) (0.5 ms) |
More Information
KIOXIA CD8P-R Series is a high-performance data centre NVMe SSD family designed for hyperscale and enterprise workloads. Powered by PCIe¨ 5.0 and NVMe 2.0 using BiCS FLASHª TLC, these U.3 (2.5_ 15 mm) drives deliver exceptional performance and reliability across multiple capacities.
Available in 1.92 TB, 3.84 TB, 7.68 TB, 15.36 TB, and 30.72 TB options with Base, SIE, and SED security variants. Each model offers up to 14,000 MB/s sequential read performance, 1 DWPD endurance, and power-efficient single-port design for continuous data-centre operation.
Ideal for virtualisation, OLTP, big data analytics, and content delivery networks.
तेज़, कुशल और विश्वसनीय प्रदर्शन.
अल्ट्रा-फास्ट PCIe® 5.0 स्पीड
तेज़ डेटा स्थानांतरण और सिस्टम प्रतिक्रिया का आनंद लें।
कम शक्ति, उच्च दक्षता
कम ऊर्जा उपयोग के साथ मजबूत प्रदर्शन प्रदान करता है।
24x7 एंटरप्राइज़ विश्वसनीयता
निरंतर, मांग वाले कार्यभार वाले वातावरण का सामना करने के लिए निर्मित।
