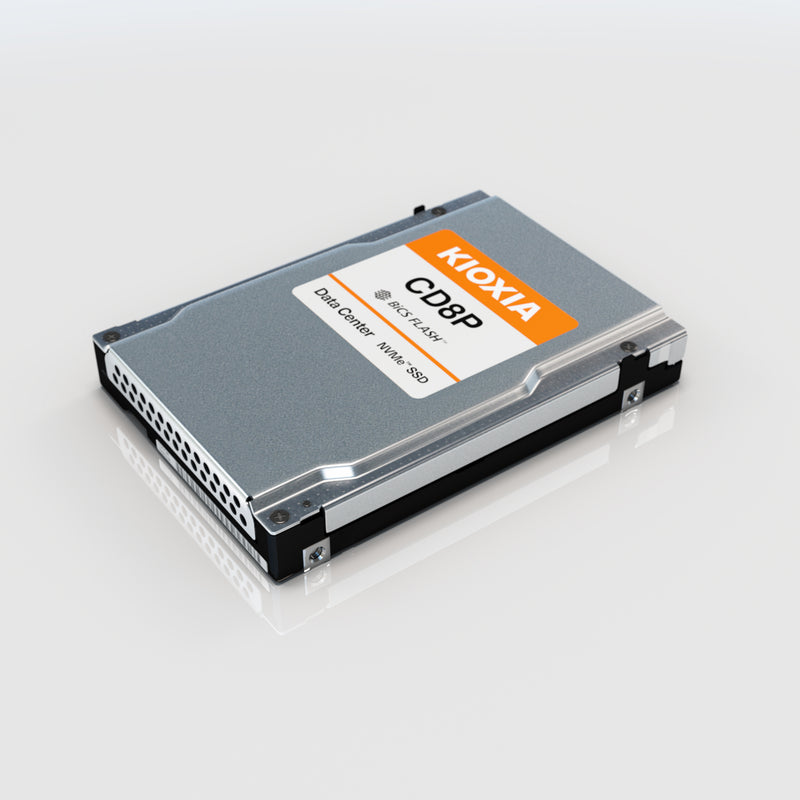

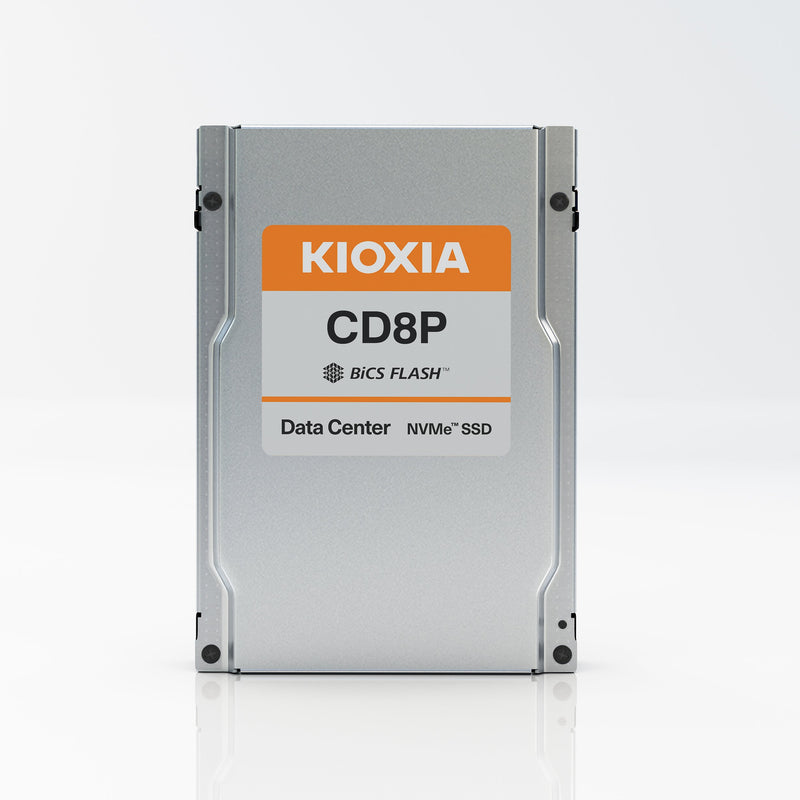

KIOXIA CD8P-R (2.5") - 7.68TB Data Centre 1 DWPD PCIe 5.0 SSD
Transform your data centre with the KIOXIA CD8P-R Series 7.68TB SSD, a high-capacity data centre NVMe SSD designed for hyperscale applications. Driven by PCIe 5.0 and NVMe 2.0 with BiCS FLASH generation 5 TLC, this 2.5" U.3 SSD achieves up to 14,000 MB/s sequential read and 5,500 MB/s sequential write speeds, with 2,000K IOPS random read performance. Offering 1 DWPD endurance and Sanitise Instant Erase (SIE) protection, it enhances big data/IoT, online transaction processing, and virtualisation. Single-port design optimised for data centre class workloads supports high availability for continuous hyperscale operations.
Product Specification for KIOXIA CD8P-R (2.5") - 7.68TB Data Centre 1 DWPD PCIe 5.0 SSD
Performance (Up To)
| Sustained 128 KiB Sequential Read | 12,000 MB/s |
| Sustained 128 KiB Sequential Write | 5,600 MB/s |
| Sustained 4 KiB Random Read | 2,000K IOPS |
| Sustained 4 KiB Random Write | 200K IOPS |
Power Requirements
| Supply Voltage | 12 V ± 10 %, 3.3 V ± 15 % |
| Power Consumption (Active) | 21 W typ. |
| Power Consumption (Ready) | 5 W typ. |
Reliability
| MTTF | 2,500,000 hours |
| Warranty | 5 years |
| DWPD | 1 |
Dimensions
| Thickness | 15 mm +0 / -0.5 mm |
| Width | 69.85 mm ± 0.25 mm |
| Length | 100.45 mm Max |
| Weight | 130 g Max |
Environmental
| Temperature (Operating) | 0 °C to 73 °C |
| Temperature (Non-operating) | -40 °C to 85 °C |
| Humidity (Operating) | 5 % to 95 % R.H. |
| Vibration (Operating) | 21.27 m/s² ( 2.17 Grms ) ( 5 to 800 Hz ) |
| Shock (Operating) | 9.8 km/s² ( 1,000 G ) ( 0.5 ms ) |
