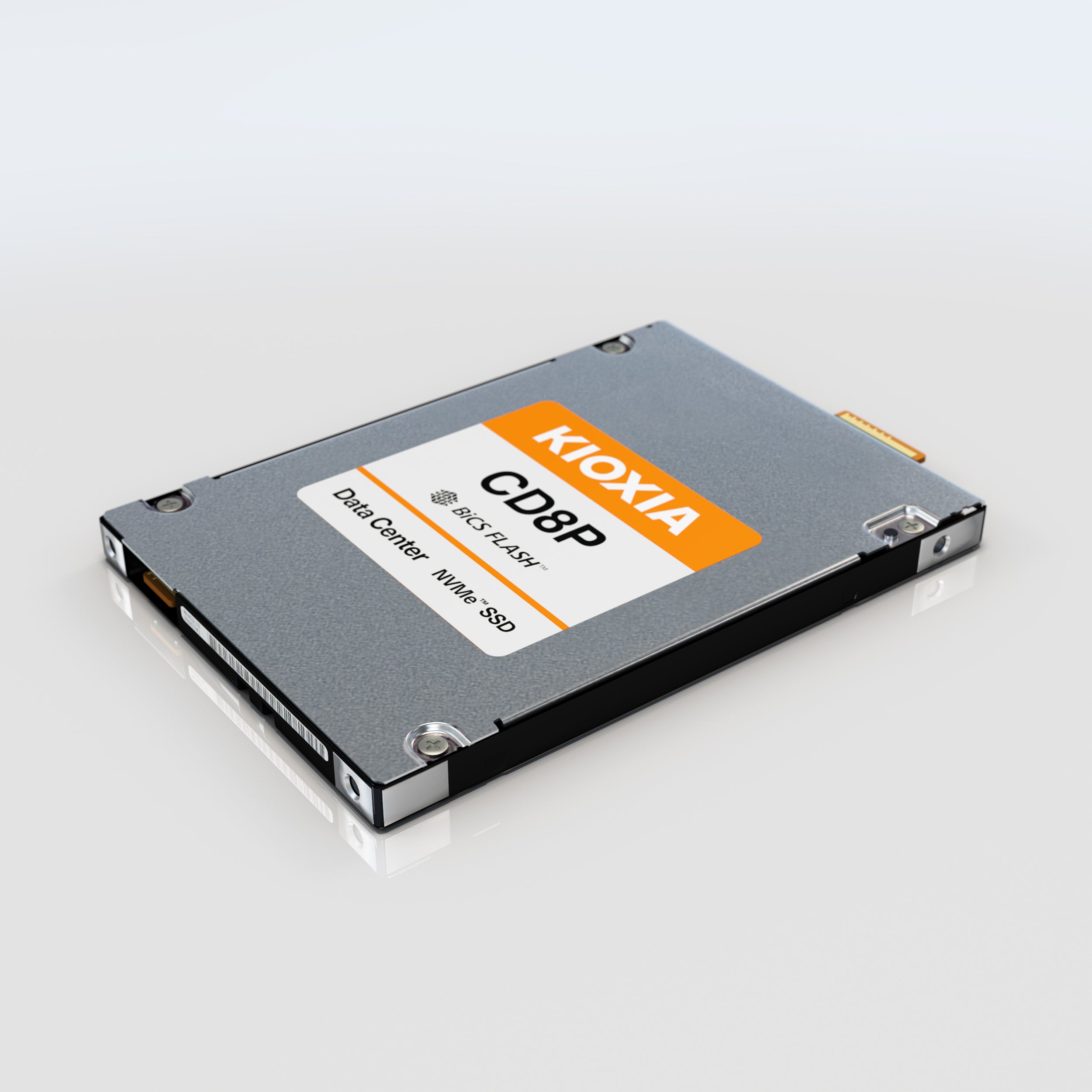

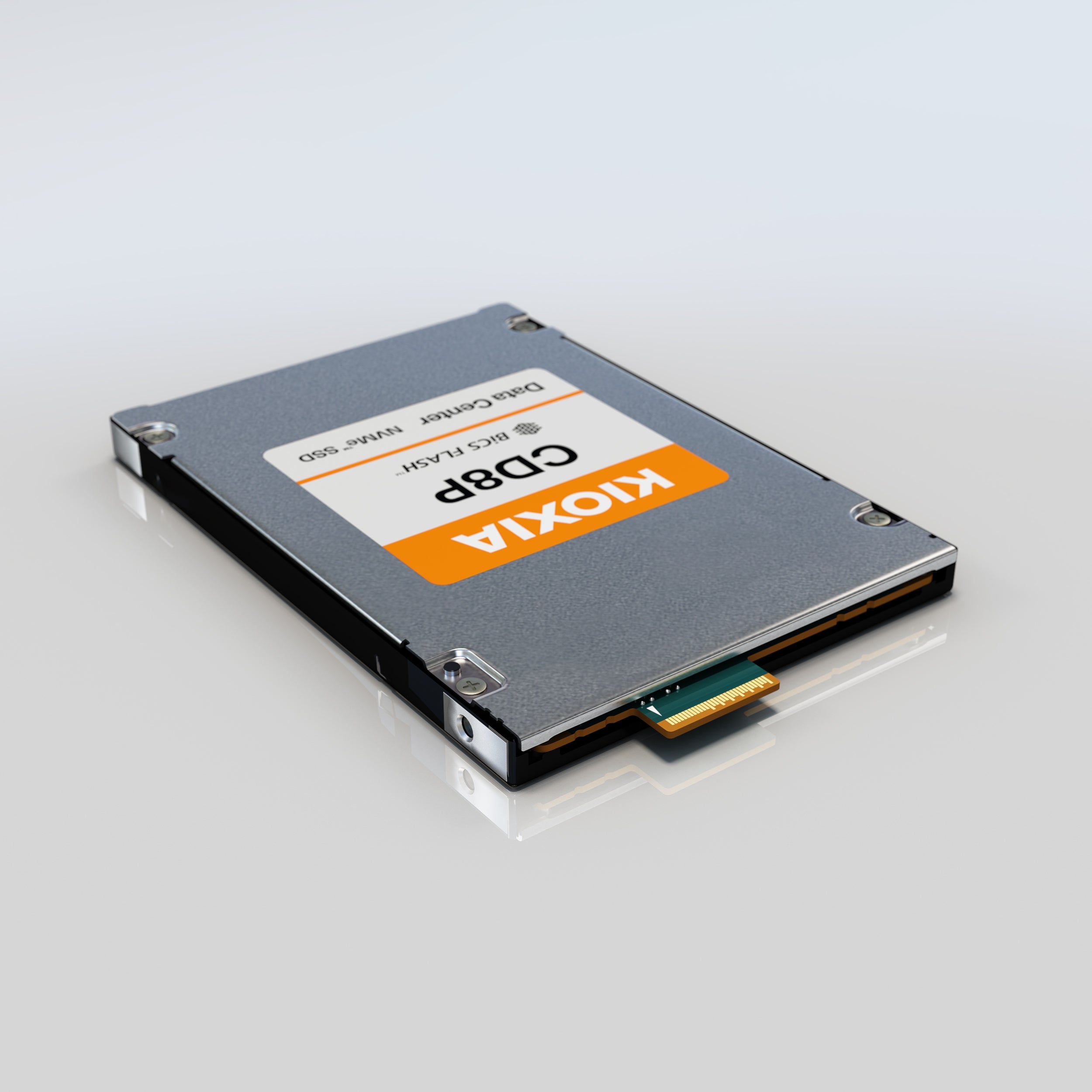

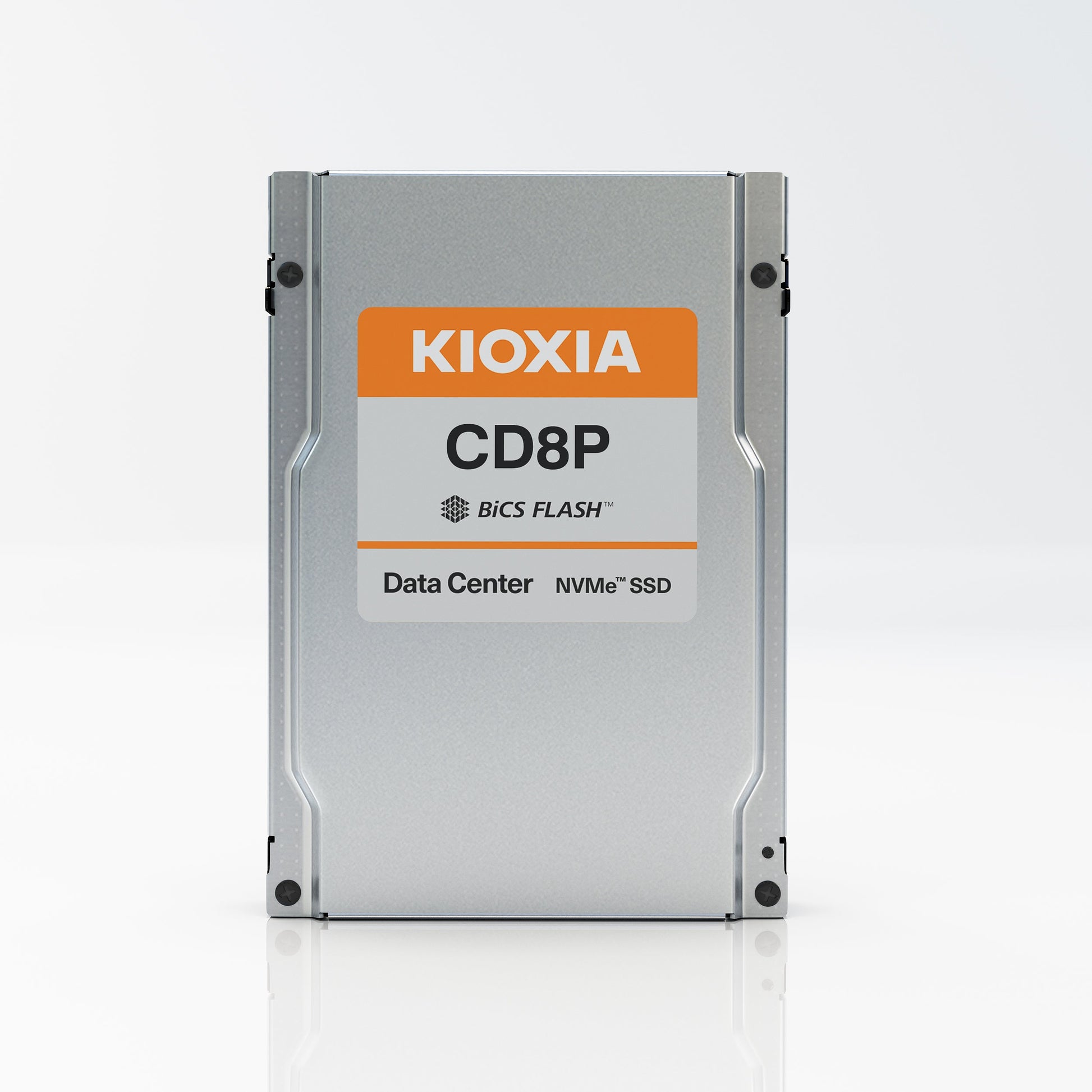

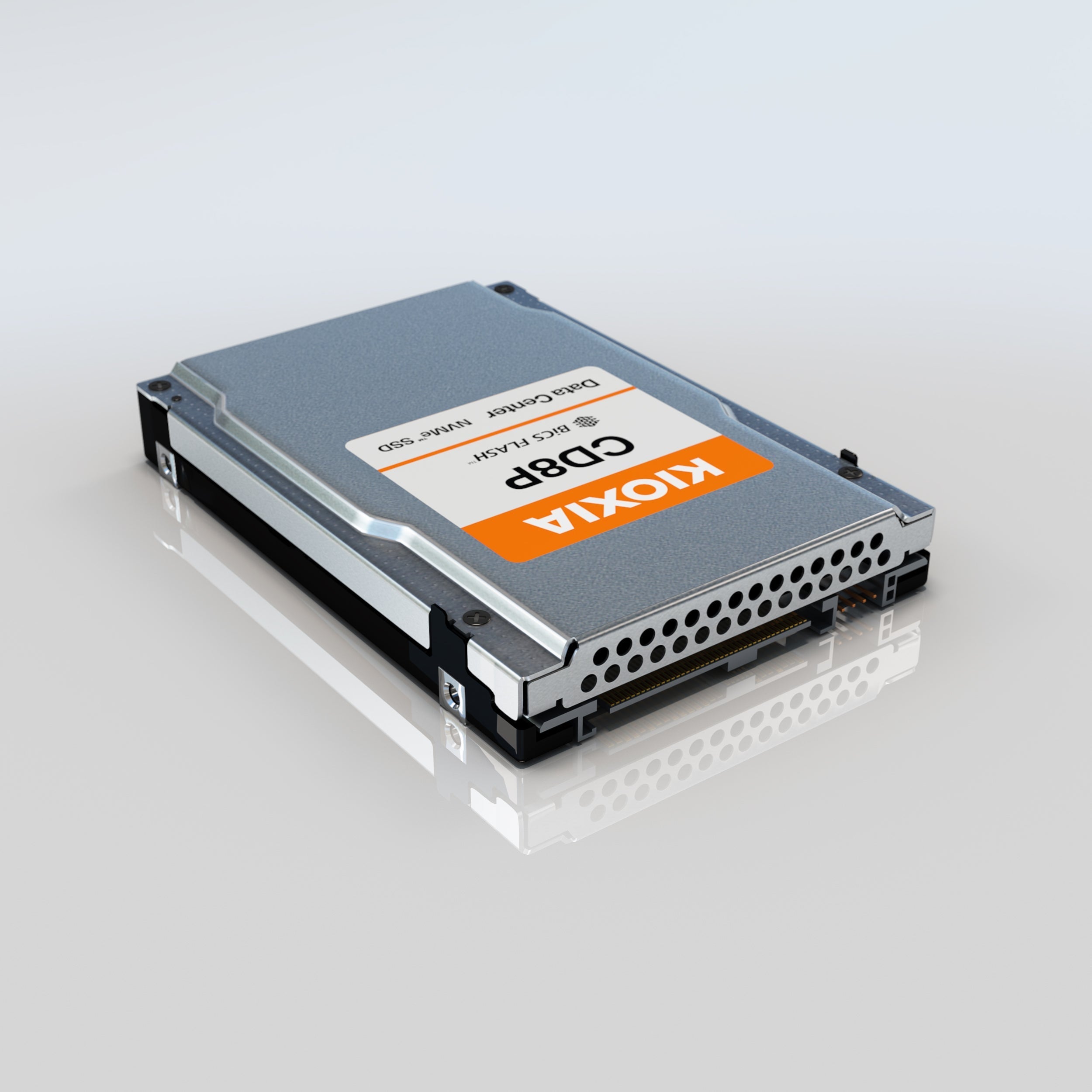

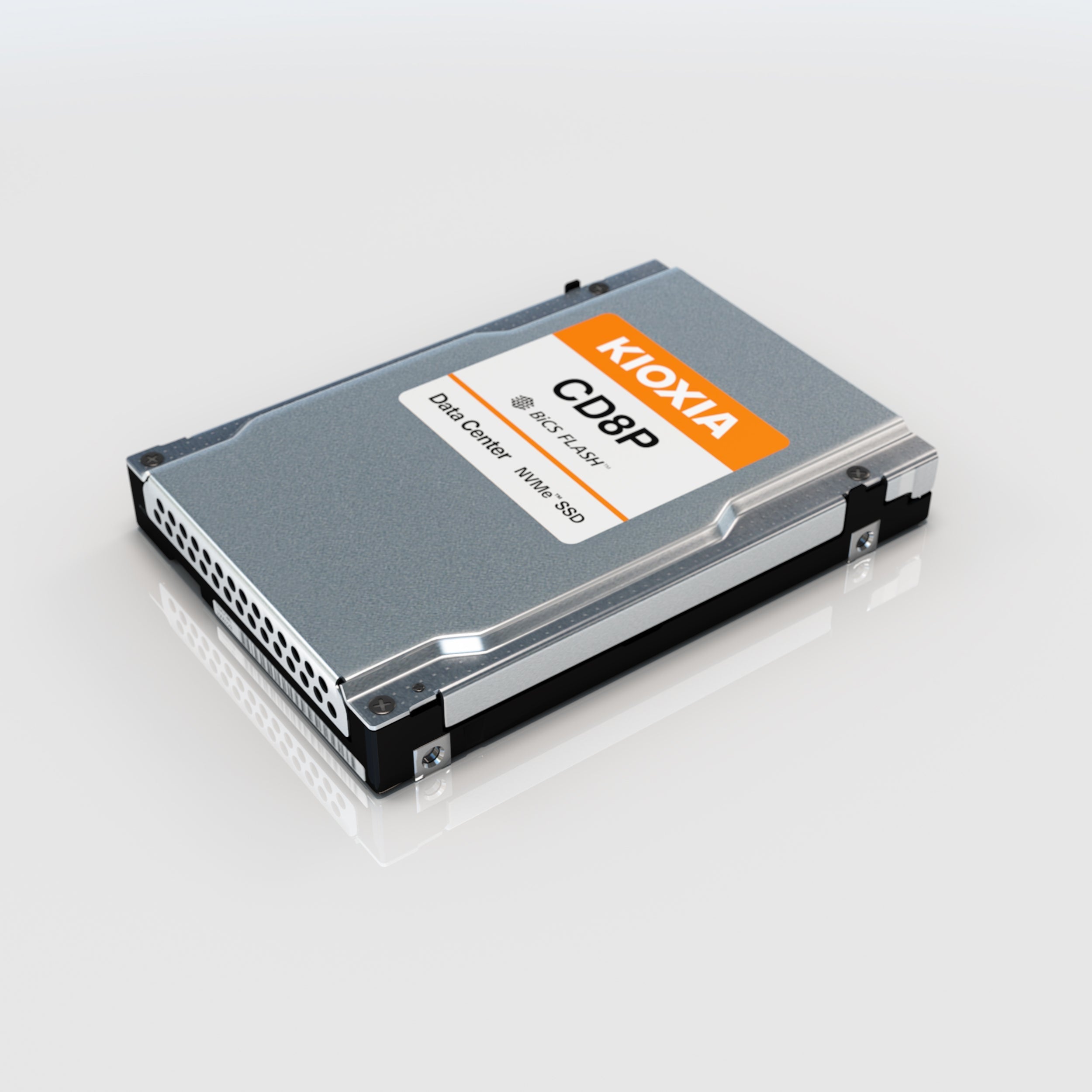

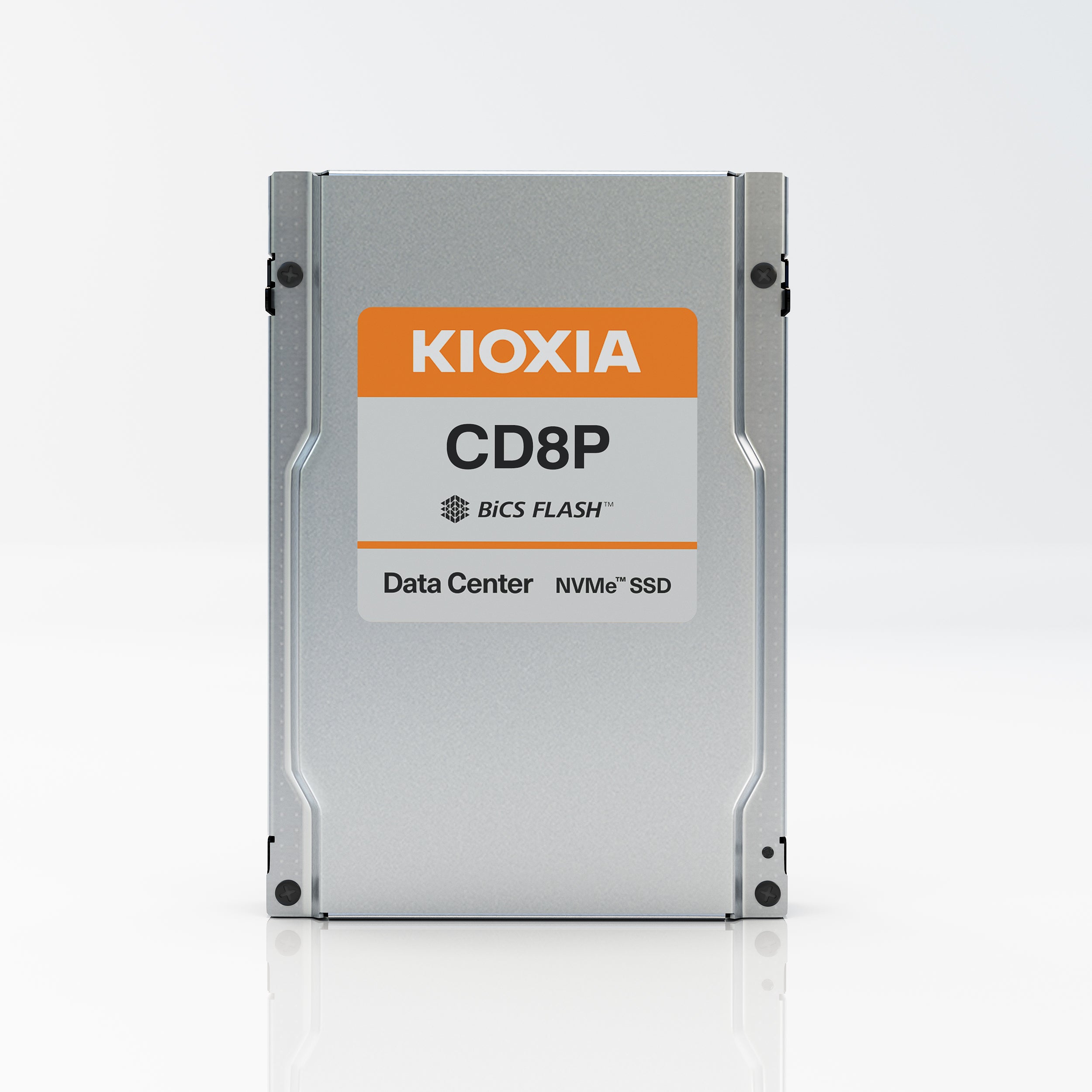

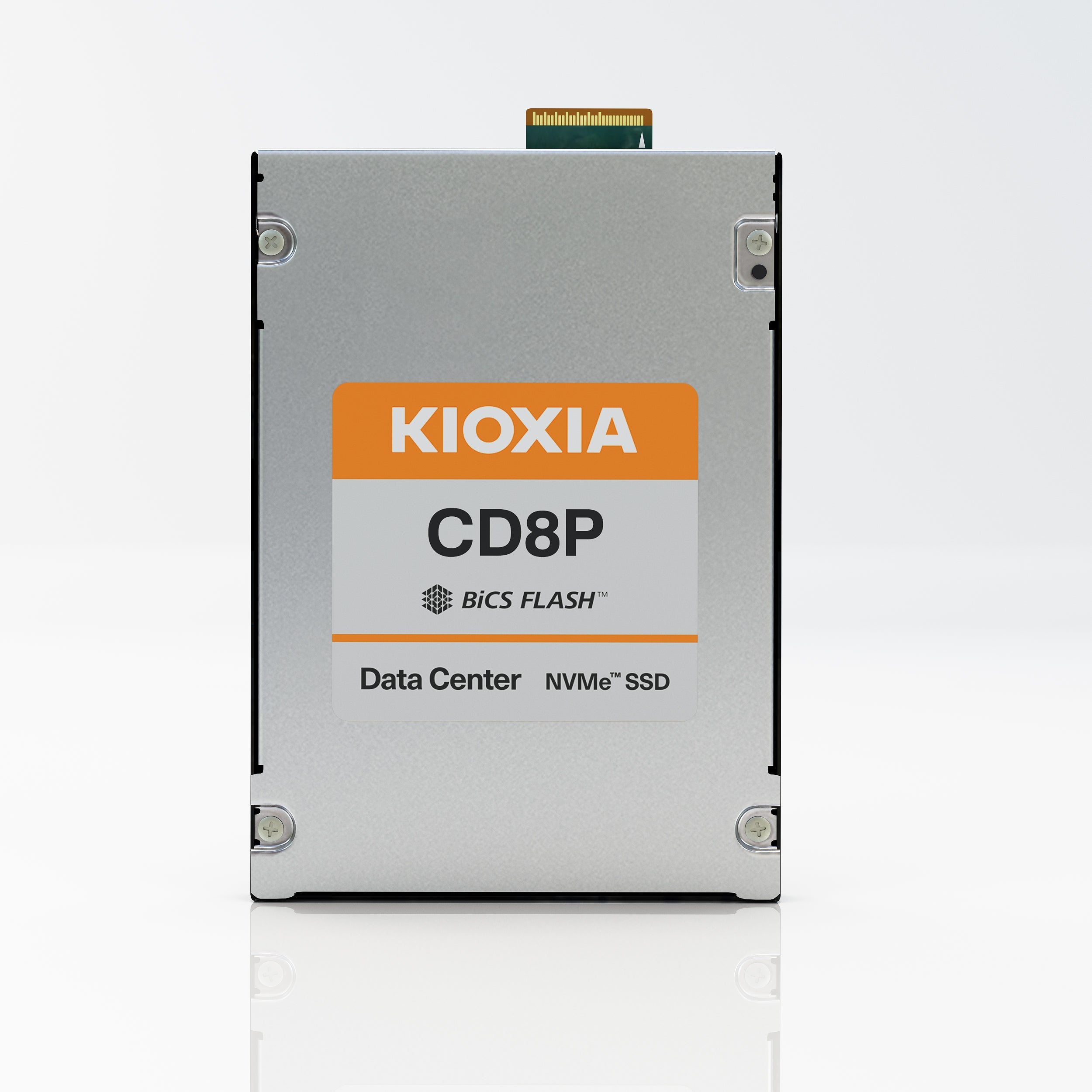

KIOXIA CD8P-V 1.6TB Mixed Use PCIe 5.0 SSD

Discover the KIOXIA CD8P-V Series E3.S 1.6TB SSD, a PCIe 5.0 NVMe SSD for enterprise use. Ideal for virtualisation with 3 DWPD and BiCS FLASH TLC.

KIOXIA /

1.6 TB 3.2 TB 6.4 TB 12.8 TB

U.3 E3.S (7.5mm)

Base SIE SED

उत्पाद प्रकार:

We won't be beaten on price. Request a quote.

Capacity

1.6 TB

3.2 TB

6.4 TB

12.8 TB

Basic Specifications

Form Factor

U.3 15mm (2.5-inch)

Interface

PCIe 5.0x4, NVMe 2.0

Flash Memory Type

BiCS FLASH Gen5 TLC 3D NAND

Endurance Rating

Mid-Endurance – 3 DWPD (5 years)

Performance (Up To)

Sequential Read

12,000 MB/s

Sequential Write

3,500 MB/s

5,500 MB/s

Random Read (4K)

1,600K IOPS

1,900K IOPS

2,000K IOPS

Random Write (4K)

300K IOPS

400K IOPS

Power Requirements

Power Loss Protection

Yes (PLP)

Max Average Active Power

18 W

19 W

21 W

23 W

Idle Power

5 W (typical)

Power States

5 flexible states (5W–25W)

Reliability / Endurance

DWPD (5-year)

3.0

DWPD (3-year)

4.98

Total Bytes Written (5-year)

8.76 PBW

17.52 PBW

35.04 PBW

70.08 PBW

Warranty

5 years

MTBF

2,500,000 hours

UBER

Tested to 1E-18 (100× JEDEC spec)

Dimensions

Form Factor

U.3 (2.5-inch)

Thickness

15 mm

Environmental

Temperature (Operating)

0 °C to 73 °C

Temperature (Non-operating)

-40 °C to 85 °C

Security & Management

NVMe Specification

NVMe v2.0

OCP Compliance

OCP Datacenter NVMe SSD Spec v2.0

Encryption

TCG-OPAL & Ruby SSCs, SIE/SED options

FIPS Certification

FIPS 140-3 Level 2 certifiable

Capacity

1.6 TB

3.2 TB

6.4 TB

12.8 TB

Basic Specifications

Form Factor

E3.S 7.5mm

Interface

PCIe 5.0x4, NVMe 2.0

Flash Memory Type

BiCS FLASH Gen5 TLC 3D NAND

Endurance Rating

Mid-Endurance – 3 DWPD (5 years)

Performance (Up To)

Sequential Read

12,000 MB/s

Sequential Write

3,500 MB/s

5,300 MB/s

5,500 MB/s

Random Read (4K)

1,600K IOPS

1,900K IOPS

2,000K IOPS

Random Write (4K)

300K IOPS

400K IOPS

Power Requirements

Power Loss Protection

Yes (PLP)

Max Average Active Power

18 W

19 W

21 W

23 W

Idle Power

5 W (typical)

Power States

5 flexible states (5W–25W)

Reliability / Endurance

DWPD (5-year)

3.0

DWPD (3-year)

4.98

Total Bytes Written (5-year)

8.76 PBW

17.52 PBW

35.04 PBW

70.08 PBW

Warranty

5 years

MTBF

2,500,000 hours

UBER

Tested to 1E-18 (100× JEDEC spec)

Dimensions

Form Factor

E3.S (7.5 mm)

Thickness

7.5 mm

Environmental

Temperature (Operating)

0 °C to 73 °C

Temperature (Non-operating)

-40 °C to 85 °C

Security & Management

NVMe Specification

NVMe v2.0

OCP Compliance

OCP Datacenter NVMe SSD Spec v2.0

Encryption

TCG-OPAL & Ruby SSCs, SIE/SED options

FIPS Certification

FIPS 140-3 Level 2 certifiable

More Information

Unlock next-generation enterprise performance with the KIOXIA CD8P-V Series Enterprise NVMe SSD, designed for mixed-use workloads in hyperscale and enterprise data centres. Available in capacities from 1.6 TB to 12.8 TB and supporting both E3.S and U.2 (2.5‚Ä≥) form factors, the CD8P-V Series combines exceptional endurance, density, and efficiency for modern storage architectures.

Powered by PCIe 5.0 and NVMe 2.0 technology with advanced BiCS FLASH‚Ñ¢ TLC NAND, these drives deliver up to 12 000 MB/s sequential read and 2 000 K IOPS random read performance. Featuring 3 DWPD endurance and integrated Power Loss Protection (PLP), the CD8P-V Series ensures consistent throughput and reliability for demanding mixed-use applications.

Optimised for virtualised environments, OLTP systems, big data analytics, and cloud workloads, the CD8P-V Series offers enterprise-grade data protection through Base, SIE (Sanitise Instant Erase), and SED (Self-Encrypting Drive) security options. Combining PCIe 5.0 bandwidth with exceptional endurance, it provides a robust foundation for hyperscale deployments and next-generation data-centre efficiency.
