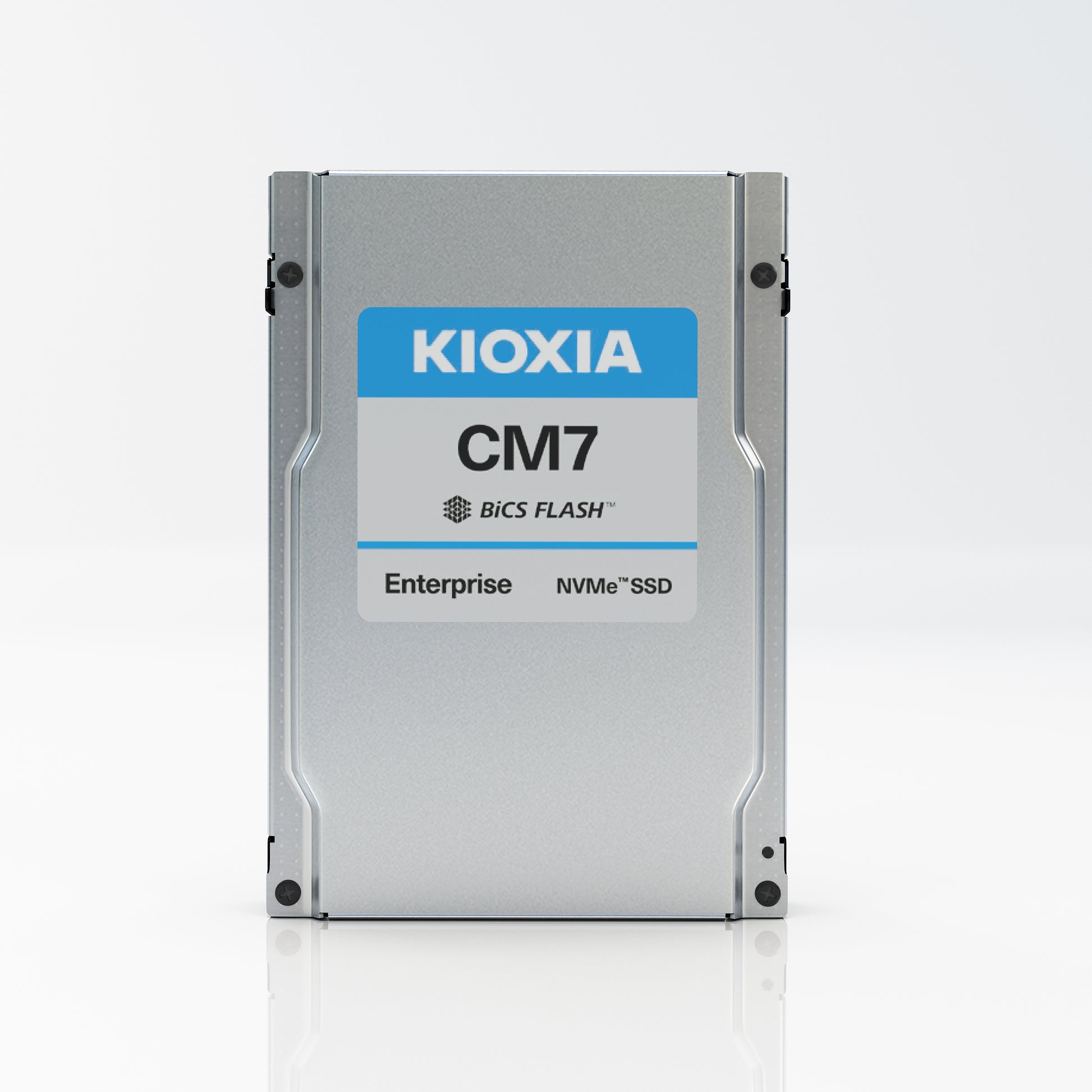

KIOXIA CM7-R (2.5") - 3.84TB Read Intensive 1 DWPD PCIe 5.0 SSD
Optimise your infrastructure with the KIOXIA CM7-R Series 3.84TB SSD, a dependable enterprise NVMe SSD for mid-tier data centers. Equipped with PCIe 5.0 and NVMe 2.0 with 112-layer BiCS FLASH TLC, this 2.5" SSD delivers up to 14,000 MB/s sequential read and 3,500 MB/s sequential write speeds, with 2,700K IOPS random read performance. With 1 DWPD endurance and power loss protection (PLP), it suits big data analytics and virtualised environments. Dual-port architecture provides high availability for demanding enterprise applications.
KIOXIA /
2.5"3.84TB SSDCM7-R-SeriesData CentreNVMe SSDPCIe 5.0Read Intensive
In Stock
Product Specification for KIOXIA CM7-R (2.5") - 3.84TB Read Intensive 1 DWPD PCIe 5.0 SSD
Performance in Single Port (1x4) Mode (Up To)
| Sustained 128 KiB Sequential Read | 14,000 MB/s |
| Sustained 128 KiB Sequential Write | 6,750 MB/s |
| Sustained 4 KiB Random Read | 2,700K IOPS |
| Sustained 4 KiB Random Write | 310K IOPS |
Power Requirements
| Supply Voltage | 12 V ± 10 %, 3.3 V ± 15 % |
| Power Consumption (Active) | 25 W typ. |
| Power Consumption (Ready) | 5 W typ. |
Reliability
| MTTF | 2,500,000 hours |
| Warranty | 5 years |
| DWPD | 1 |
Dimensions
| Thickness | 15.0 mm +0 / -0.5 mm |
| Width | 69.85 mm ± 0.25 mm |
| Length | 100.45 mm Max |
| Weight | 130 g Max |
Environmental
| Temperature (Operating) | 0 °C to 76 °C |
| Temperature (Non-operating) | -40 °C to 85 °C |
| Humidity (Operating) | 5 % to 95 % R.H. |
| Vibration (Operating) | 21.27 m/s² ( 2.17 Grms ) ( 5 to 800 Hz ) |
| Shock (Operating) | 9.8 km/s² ( 1,000 G ) ( 0.5 ms ) |
उत्पाद हाइलाइट्स
तेज़, कुशल और विश्वसनीय प्रदर्शन.
अल्ट्रा-फास्ट PCIe® 5.0 स्पीड
तेज़ डेटा स्थानांतरण और सिस्टम प्रतिक्रिया का आनंद लें।
कम शक्ति, उच्च दक्षता
कम ऊर्जा उपयोग के साथ मजबूत प्रदर्शन प्रदान करता है।
24x7 एंटरप्राइज़ विश्वसनीयता
निरंतर, मांग वाले कार्यभार वाले वातावरण का सामना करने के लिए निर्मित।
