KIOXIA XD8 Series 1.92TB E1.S 15mm SSD

Perfect for OLTP with the KIOXIA XD8 1.92TB SSD, built for entry-level power!

KIOXIA /

1.92 TB 3.84 TB 7.68 TB

E1.S (15mm) E1.S (9.5mm)

Base SED

उत्पाद प्रकार:

We won't be beaten on price. Request a quote.

Capacity

1.92 TB

3.84 TB

7.68 TB

Basic Specifications

Form Factor

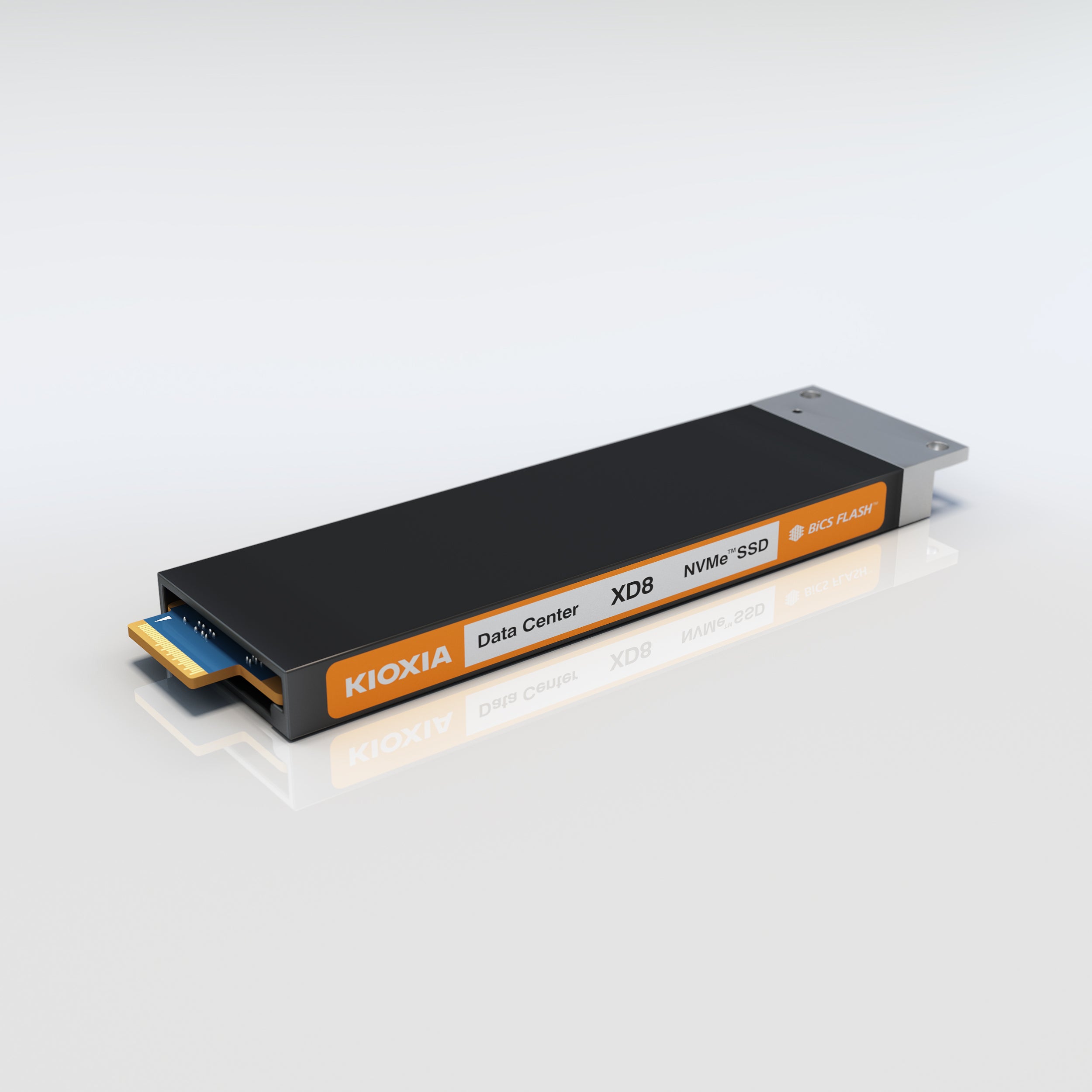

E1.S (9.5 mm) with integrated heatsink

Interface

PCIe 5.0x4, NVMe 2.0

Flash Memory Type

BiCS FLASH TLC 3D NAND

Endurance Rating

1 DWPD (5 years)

Performance (Up To)

Sequential Read

12,500 MB/s

Sequential Write

5,800 MB/s

Random Read (4K)

2,300K IOPS

Random Write (4K)

250K IOPS

Power Requirements

Active Power (Typical, 7.68TB)

21 W

Reliability / Endurance

DWPD (5-year)

1.0

Dimensions

Form Factor

E1.S (EDSFF) 9.5 mm heatsink

Thickness x Width x Length

9.5 x 33.75 x 118.75 mm

Security & Management

NVMe Specification

NVMe v2.0

OCP Compliance

OCP Datacenter NVMe SSD Spec v2.5

Encryption

TCG Opal v2.0 / OCP v2.5 Compliant Security

FIPS Certification

Optional (availability varies by region)

Capacity

1.92 TB

3.84 TB

7.68 TB

Basic Specifications

Form Factor

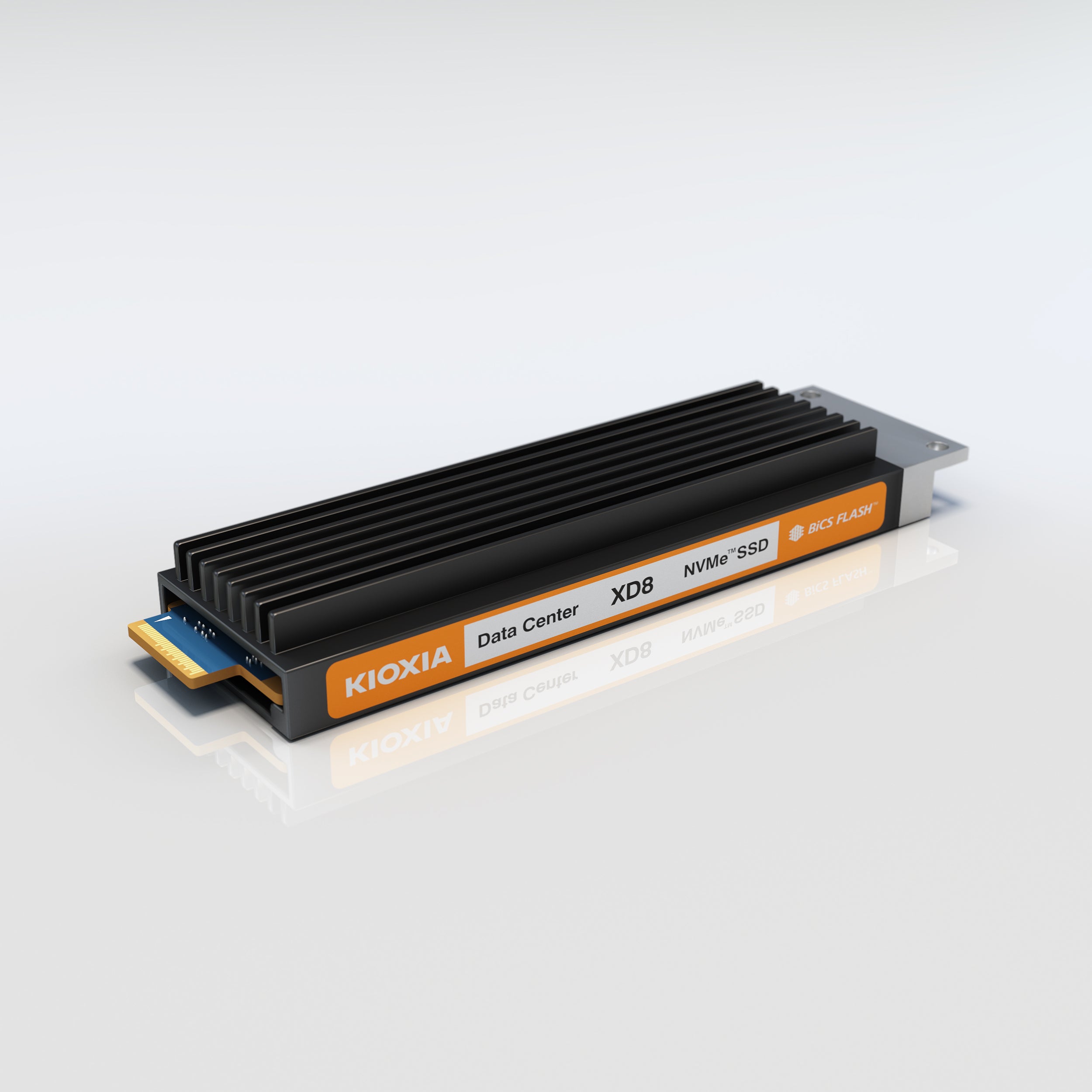

E1.S (15 mm) with integrated heatsink

Interface

PCIe 5.0x4, NVMe 2.0

Flash Memory Type

BiCS FLASH TLC 3D NAND

Endurance Rating

1 DWPD (5 years)

Performance (Up To)

Sequential Read

12,500 MB/s

Sequential Write

5,800 MB/s

Random Read (4K)

2,300K IOPS

Random Write (4K)

250K IOPS

Power Requirements

Active Power (Typical, 7.68TB)

21 W

Reliability / Endurance

DWPD (5-year)

1.0

Dimensions

Form Factor

E1.S (EDSFF) 15 mm heatsink

Thickness x Width x Length

15.0 x 33.75 x 118.75 mm

Security & Management

NVMe Specification

NVMe v2.0

OCP Compliance

OCP Datacenter NVMe SSD Spec v2.5

Encryption

TCG Opal v2.0 / OCP v2.5 Compliant Security

FIPS Certification

Optional (availability varies by region)

More Information

Maximise hyperscale performance with the KIOXIA XD8 Series Enterprise NVMe SSD, purpose-built for cloud infrastructure and data-intensive applications. Available in capacities from 1.92 TB to 7.68 TB and in 9.5 mm and 15 mm E1.S form factors, the XD8 Series delivers exceptional efficiency and density for next-generation data centres.

Powered by PCIe 5.0 and BiCS FLASH Generation 5 TLC NAND, these drives achieve sequential read and write speeds of up to 12,500 MB/s and 5,500 MB/s, respectively, with 1 DWPD endurance and integrated Power Loss Protection (PLP) for consistent reliability. Designed to handle the demands of virtualised environments, big data analytics, and streaming media, the XD8 Series ensures sustained performance across diverse workloads.

Each drive supports Base and SED security options to protect critical enterprise data, making the XD8 Series an ideal solution for cloud service providers, hyperscale deployments, and edge computing environments that require high density, efficiency, and trusted reliability.
