Memblaze PBlaze6 6920 Series NVMe SSD | Enterprise Storage

Capacity

3.2 TB

3.84 TB

6.4 TB

7.68 TB

12.8 TB

15.36 TB

30.72 TB

Basic Specifications

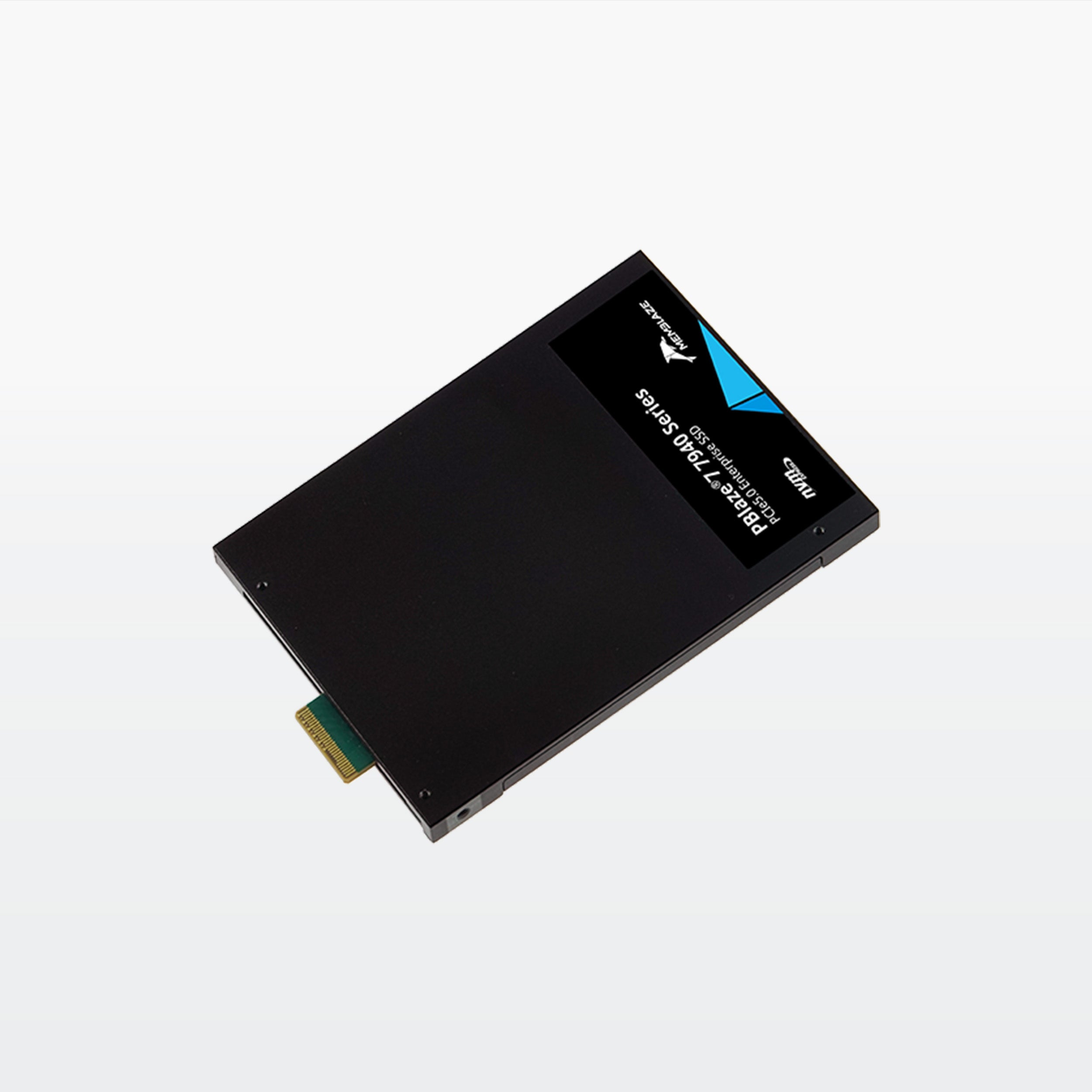

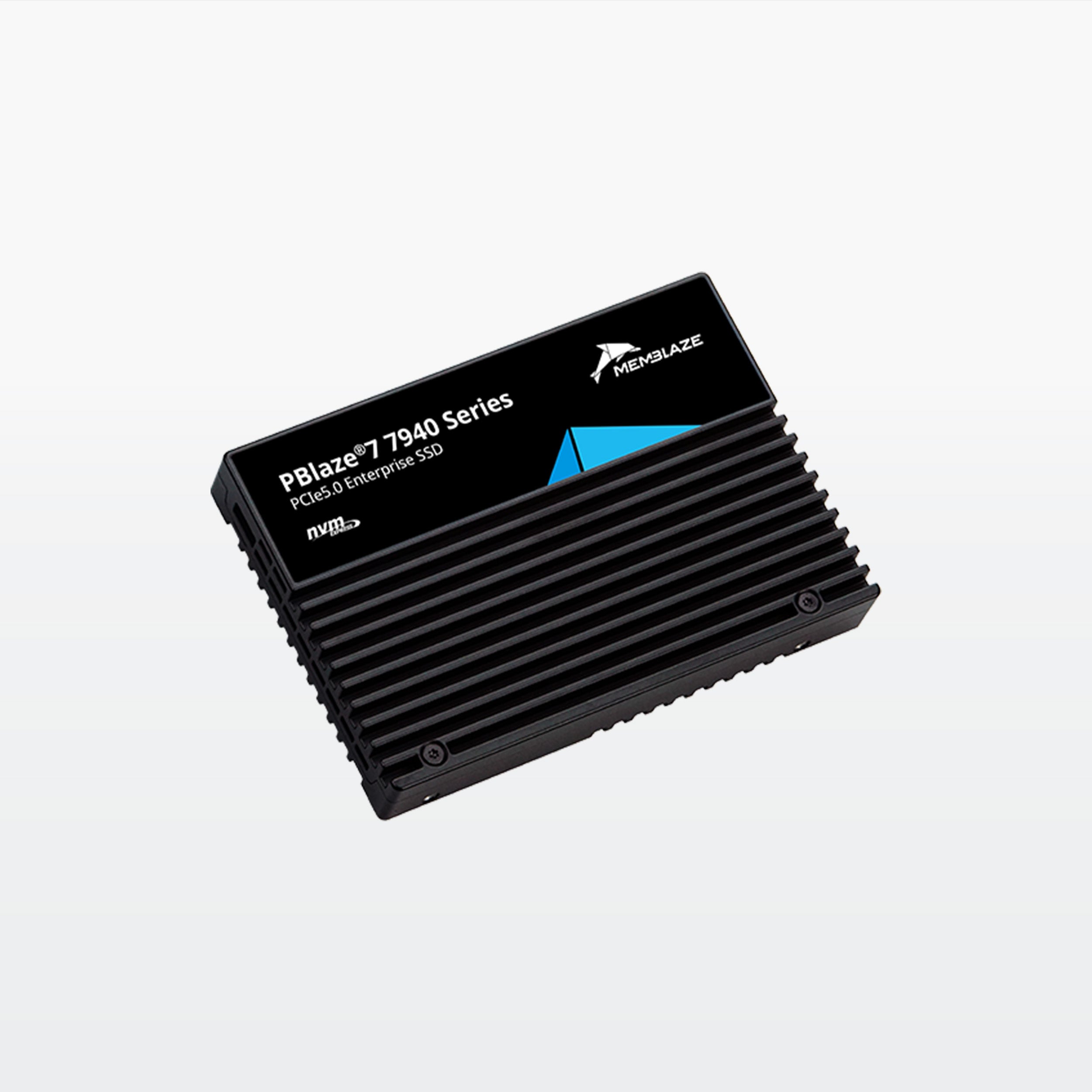

Form Factor

U.2 (2.5-inch)

Interface

PCIe 5.0 x4

Flash Memory Type

3D TLC NAND

Endurance Rating

7940: 1 DWPD / 7946: 3 DWPD (capacity dependent)

Performance (Up To)

Sequential Read

14 GB/s

13.5 GB/s

14 GB/s

Sequential Write

5.8 GB/s

10 GB/s

9.5 GB/s

9.7 GB/s

Random Read (4K)

2,700K IOPS

2,800K IOPS

2,700K IOPS

Random Write (4K)

530K IOPS

260K IOPS

710K IOPS

410K IOPS

720K IOPS

410K IOPS

Latency (Random R/W)

57 / 9 μs

Latency (Sequential R/W)

8 / 9 μs

Power Requirements

Power Loss Protection

Yes

Max Active Power

< 25 W

Power States

Configurable modes ~12 W to 25 W

Reliability / Endurance

DWPD (5-year)

3.0

1.0

3.0

1.0

3.0

1.0

MTBF

2,500,000 hours

UBER

< 1E-18

Dimensions

Form Factor

U.2 (2.5-inch)

Thickness

15 mm

Environmental

Temperature (Operating)

0 °C to 77 °C (case)

Security & Management

NVMe Specification

NVMe v2.0

OCP Compliance

OCP 2.0

Encryption

AES 256-bit; Crypto Erase; Sanitize

NVMe-MI / Telemetry

NVMe-MI 1.2b; Telemetry; Persistent Event Log

Other

End-to-End Data Protection; 128K Write Atomicity; ARP; Hot-pluggable

Capacity

3.2 TB

3.84 TB

6.4 TB

7.68 TB

12.8 TB

15.36 TB

Basic Specifications

Form Factor

E3.S 7.5mm

Interface

PCIe 5.0 x4

Flash Memory Type

3D TLC NAND

Endurance Rating

7940: 1 DWPD / 7946: 3 DWPD (capacity dependent)

Performance (Up To)

Sequential Read

14 GB/s

13.5 GB/s

Sequential Write

5.8 GB/s

10 GB/s

9.5 GB/s

Random Read (4K)

2,700K IOPS

2,800K IOPS

Random Write (4K)

700K–710K IOPS (capacity dependent)

Power Requirements

Power Loss Protection

Yes

Max Active Power

< 25 W

Power States

Configurable modes ~12 W to 25 W

Reliability / Endurance

DWPD (5-year)

3.0

1.0

3.0

1.0

3.0

1.0

MTBF

2,500,000 hours

UBER

< 1E-18

Dimensions

Form Factor

E3.S

Thickness

7.5 mm

Environmental

Temperature (Operating)

0 °C to 77 °C (case)

Security & Management

NVMe Specification

NVMe v2.0

OCP Compliance

OCP 2.0

Encryption

AES 256-bit; Crypto Erase; Sanitize

NVMe-MI / Telemetry

NVMe-MI 1.2b; Telemetry; Persistent Event Log

Other

End-to-End Data Protection; 128K Write Atomicity; ARP; Hot-pluggable

Capacity

3.2 TB

3.84 TB

6.4 TB

7.68 TB

12.8 TB

15.36 TB

Basic Specifications

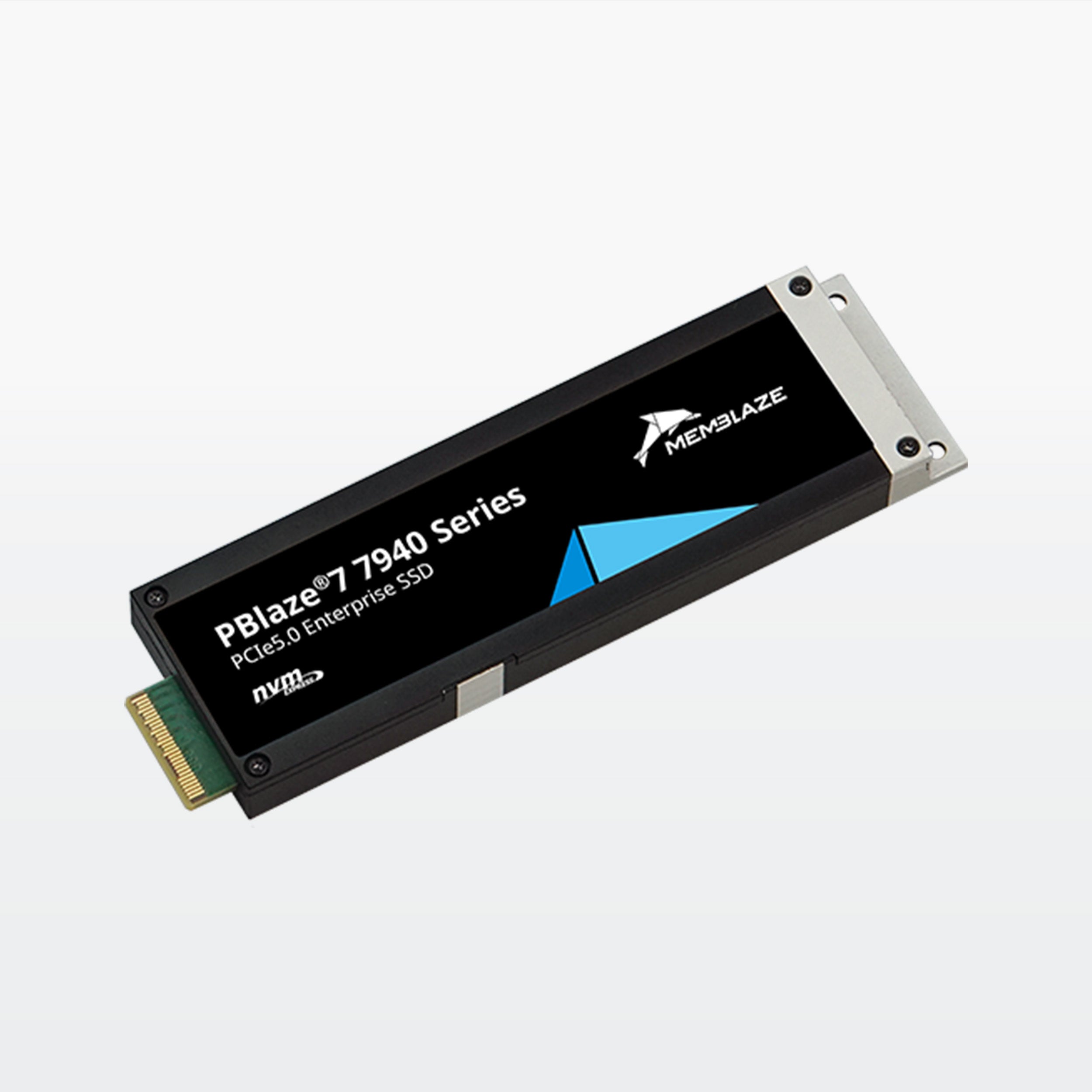

Form Factor

E1.S 15mm

Interface

PCIe 5.0 x4

Flash Memory Type

3D TLC NAND

Endurance Rating

7940: 1 DWPD / 7946: 3 DWPD (capacity dependent)

Performance (Up To)

Sequential Read

14 GB/s

13.5 GB/s

Sequential Write

5.8 GB/s

10 GB/s

9.5 GB/s

Random Read (4K)

2,700K IOPS

2,800K IOPS

Random Write (4K)

Up to 720K IOPS (capacity dependent; e.g., 7.68TB ≈ 380K)

Power Requirements

Power Loss Protection

Yes

Max Active Power

< 25 W

Power States

Configurable modes ~12 W to 25 W

Reliability / Endurance

DWPD (5-year)

3.0

1.0

3.0

1.0

3.0

1.0

MTBF

2,500,000 hours

UBER

< 1E-18

Dimensions

Form Factor

E1.S

Thickness

15 mm

Environmental

Temperature (Operating)

0 °C to 77 °C (case)

Security & Management

NVMe Specification

NVMe v2.0

OCP Compliance

OCP 2.0

Encryption

AES 256-bit; Crypto Erase; Sanitize

NVMe-MI / Telemetry

NVMe-MI 1.2b; Telemetry; Persistent Event Log

Other

End-to-End Data Protection; 128K Write Atomicity; ARP; Hot-pluggable

Capacity

3.2 TB

3.84 TB

6.4 TB

7.68 TB

12.8 TB

15.36 TB

Basic Specifications

Form Factor

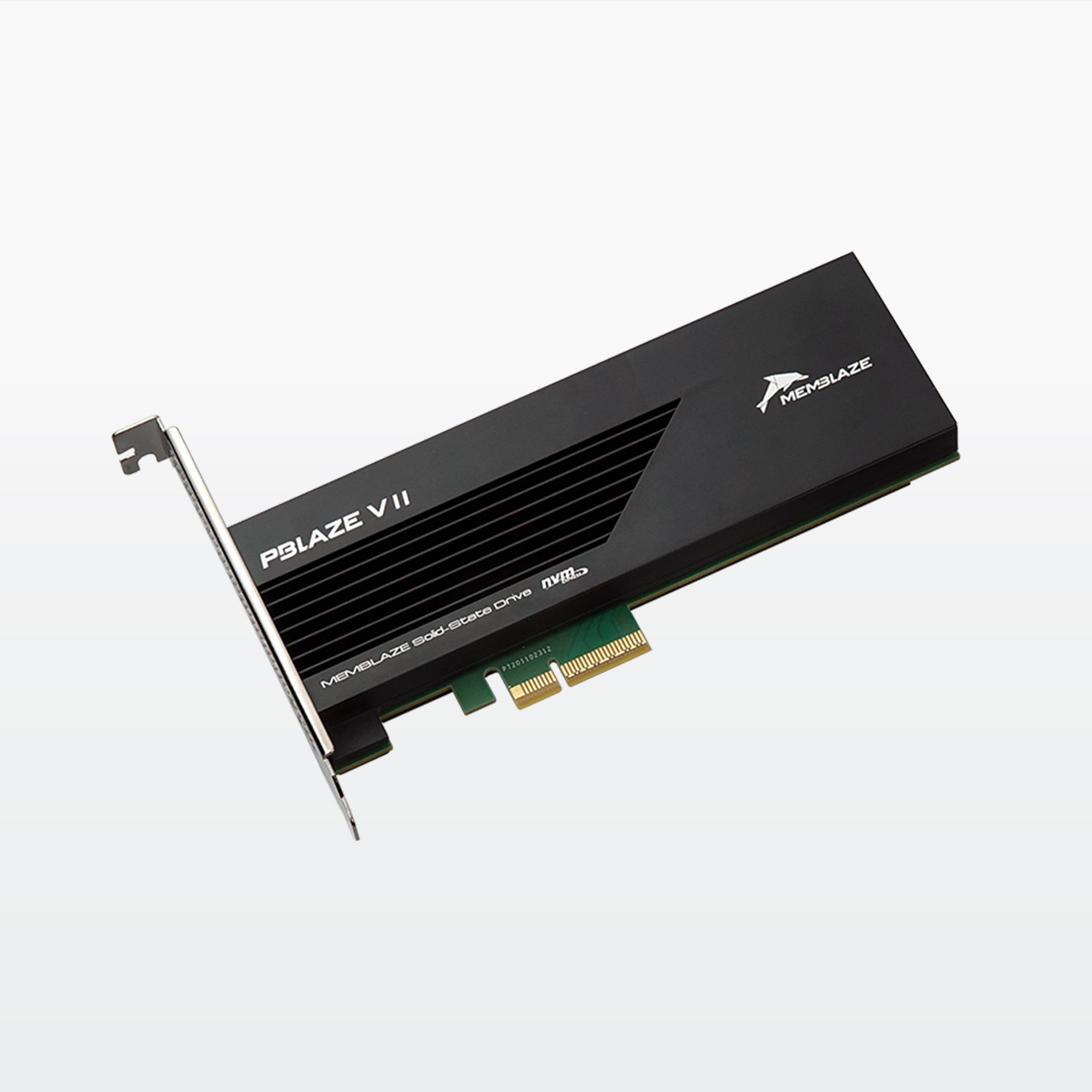

Half-Height Half-Length Add-in Card

Interface

PCIe 5.0 x4

Flash Memory Type

3D TLC NAND

Endurance Rating

7940: 1 DWPD / 7946: 3 DWPD (capacity dependent)

Performance (Up To)

Sequential Read

Up to 14 GB/s

Sequential Write

Up to 10 GB/s

Random Read (4K)

Up to 2,800K IOPS

Random Write (4K)

Up to 720K IOPS

Power Requirements

Power Loss Protection

Yes

Max Active Power

< 25 W

Reliability / Endurance

DWPD (5-year)

3.0

1.0

3.0

1.0

3.0

1.0

MTBF

2,500,000 hours

UBER

< 1E-18

Environmental

Temperature (Operating)

0 °C to 77 °C (case)

Security & Management

NVMe Specification

NVMe v2.0

OCP Compliance

OCP 2.0

Encryption

AES 256-bit; Crypto Erase; Sanitize

More Information

The PBlaze7 7940 Series NVMe SSD adopts PCIe 5.0 interface and supports NVMe 2.0, delivering 2.5 times the performance and 1.5 times the power efficiency compared to conventional PCIe 4.0 SSDs. This exceptional performance enables it to meet the growing storage performance demands for cutting-edge digital technology applications.

PCIe 5.0 High Performance: Developed on MUFP, the PBlaze7 7940 series achieves up to 2,800K IOPS for 4K random read and 720K IOPS for write. Sequential read and write performance reaches 14GB/s and 10GB/s respectively, with reduced latency to 57/9μs for consistent QoS.

High-Capacity and Diverse Form Factors: Available in capacities from 3.2TB to 30.72TB in 2.5-inch U.2, E3.S, E1.S, and HHHL AIC form factors for compatibility with diverse deployment environments.

Optimal Power Efficiency: Delivers up to 970MB/s sequential read performance per watt with dynamic power control ranging from 12W to 25W.

Enterprise Features: Upgraded to NVMe 2.0 and OCP 2.0 specifications with NVMe-MI 1.2b, end-to-end data protection, 128K Write Atomicity Normal, ARP, AES 256 encryption, sanitize, power failure protection, and secure boot.
